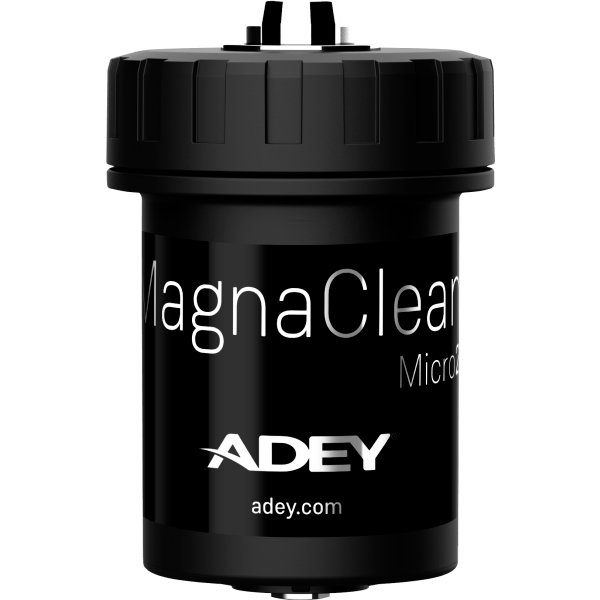

Don’t be fooled by its size. The MagnaClean® Micro2 is a compact filter, but its performance is still powerful. Streamlined to fit easily into the tightest of spaces, it provides exceptional protection against magnetite and other debris for small heating systems.
Homeowner Benefits
- 6% annual saving on heating bills
- Immediate ongoing central heating protection
- Extends the life of the central heating system
- Reduced carbon emissions
- 10-year warranty when registered within 30 days of install

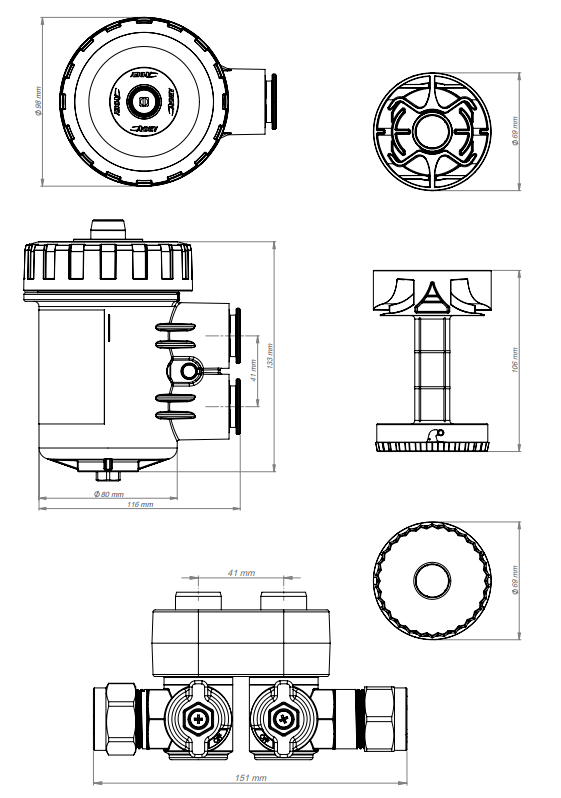

Technical Specifications
Canister and Lid
- Material: Glass reinforced nylon
- Fluid capacity: 250ml
- Inlet diameter: 22mm at valve
- Outlet diameter: 22mm at valve
- Thread: Pressure thread
- Flow configuration: Bi-directional – either port can be inlet
- Main lid seal: EPDM
- Valve to canister: EPDM
Magnet
- Housing: Stainless steel
- Length: 97.5mm
- Diameter: 19mm
Bleed Valve
- Body material: Nickel plated brass
- Screw: Nickel plated brass
- Thread interface: M6
- Seals: EPDM
Drain port
- Drain plug material: Nickel plated brass
- Drain plug thread: M8
- Seals: EPDM
Triple seal valves
- Body material: Nickel plated brass
- Seals material: Long life PTFE ball seals
- O ring material: EPDM 70 seals x 3
- Valve inlet/outlet: 22mm
Installer Benefits
- High performance compact filter – ideal for tight spaces
- In-line installation can be completed in just two minutes
- 360° rotational valves providing multiple installation options, only a quarter turn to isolate
- Bi-directional flow means either port can be an inlet, increasing flexibility
- Ultra-thin sheath to enhance magnetic capture
- Low profile drain valve designed for easier servicing and dosing
- Twin reverse flow, maximising debris capture
- Improved sheath design for dual non-magnetic capture
- Rapid fit connectors for faster servicing
