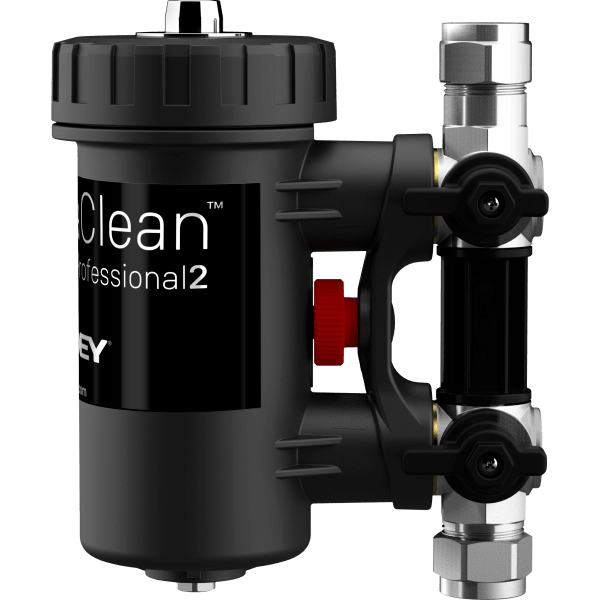

MagnaClean Professional2® has been expertly designed to maximise the capture of magnetite. Engineered to actively trap virtually all circulating debris, it never stops delivering the very best protection. No wonder it’s the UK’s first choice filter.
Homeowner Benefits
6%* annual saving on heating bills (*For a typical three-bedroom property based on independent research)
Immediate ongoing central heating system protection
Extends the life of the central heating system
Reduced carbon emissions
Correctly sized filter for the central heating system
10-year warranty if registered within 30 days of install
Technical Specifications
Canister and lid
Material: Glass reinforced nylon
Fluid capacity: 550 ml
Inlet diameter: 22 mm at valve
Outlet diameter: 22 mm at valve
Thread: Pressure thread
Flow configuration: Bi-directional
Main lid seal: EPDM
Valve to canister: EPDM
Magnet
Housing: Stainless steel
Length: 150 mm
Diameter: 19 mm
Bleed valve
Body material: Nickel plated brass
Screw: Nickel plated brass
Thread interface: M6
Seals: EPDM
Drain port
Drain plug material: Nickel plated brass
Drain plug thread: M8
Seals: EPDM
Triple seal valves
Body material: Nickel plated brass
Seals material: Long life PTFE ball seals
O ring material: EPDM 70 seals x3
Valve inlet/outlet: 22 mm
Servicing Clearance
Air vent (top): 50 mm
Drain Plug (bottom): 50 mm
Installer Benefits
In-line installation can be completed in just two minutes
