DAB ESYBOX

TECHNICAL DATA

Operating range: capacity up to 120 l/min; head up to 65 m.
Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.

Liquid temperature range: from 0°C to +35°C for domestic use, for other use: from 0°C to +40°C
Maximum suction depth: 8 metres
Maximum ambient temperature: +40°C
Maximum operating pressure: 8 bar (800 kPa)
Motor protection rating: IPX4
Insulation class: F
Insulation class: Horizontal or vertical fixed position
Special executions on request: alternative voltages and/or frequencies.

APPLICATIONS

ESYBOX is DAB’s integrated electronic water pressurisation system for domestic and residential use.
The ESYBOX inverter system provides the comfort of constant water pressure, while saving energy too.
Suitable for use for potable water, in domestic plants for gardening and irrigation. Suitable for creating groups of up to 4 pumps.
ESYBOX requires no additional components for installation.

FEATURES

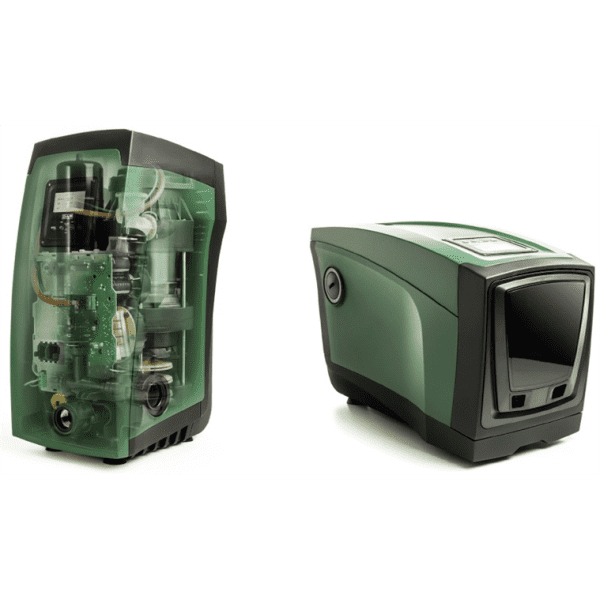

ESYBOX comprises a self-priming, multi-stage pump with electronic inverter management, pressure and flow sensors, adjustable, high resolution LCD display and an integrated 2 litre expansion tank.
May be installed either vertically or horizontally, in closed spaces without high level of air exchange. The accessories (e.sywall, e.sydock, e.sytwin, e.sytank) permit several installation possibilities.
The water-cooled motor, the protective and sound damping ABS hull, the anti-vibration feet and its electronics make this compact product very quiet (45dB under normal use).
The wireless system enables the creation of other pressurisation groups able to connect with other DAB devices (eg, e.sylink).
The constant pressure can be set from 1 to 6 bar for ESYBOX.

Technical Specifications

Manufacturer Part Number

60161181
