CF210 is for industrial / commercial work, for domestic work , please see CF40 and CF90
COMMERCIAL POWER FLUSHING & DESCALING PUMP
The CF210 Titan is a purpose built tool for power flushing heating and cooling systems to cure the circulation and noise problems which often occur with time, or as a result of design or installation faults. These problems are generally caused by accumulations of sludge, corrosion deposits and scale which need to be removed.
The CLEARFLOW pump is temporarily connected into a system so that the high water velocity, combined with an instantaneous flow reversing device, dislodges and mobilises sludge and corrosion deposits, even those which resist traditional cleaning methods.
Having loosened and mobilised the debris, the CLEARFLOW pump forcibly expels it from the system through a full bore dump valve and out to waste using a high velocity flow of fresh water.
Radiators and other heat emitters may be individually flushed without removal or disconnection from the system. After the flush, the system is full of clean water and reinstatement to normal operation takes only a few minutes.
The CLEARFLOW CF210 is built with acid resistant materials and can handle all normal commercially available descaling and power flushing chemicals. It is suitable for power flushing commercial and industrial systems, and for descaling commercial boilers, calorifiers, chillers and water heaters. It may also be used to circulate chlorine solutions for system sterilisation purposes.
The CF210 Titan is a purpose built tool for power flushing heating and cooling systems to cure the circulation and noise problems which often occur with time, or as a result of design or installation faults.
The Clearflow CF210 can handle all normal descaling and power flushing chemicals. It is suitable for power flushing commercial and industrial systems, and for descaling commercial boilers, calorifiers, chillers and water heaters.
Chemicals safely contained in integral 125lt tank
Handles all descaling and flushing chemicals
Instantaneous flow reversal
Self priming
Run-dry capability
Integral waste water discharge facility
Integral fresh water flush activity
Technical Data
Electric motor: 3/4 HP, IP55 rating, 110 volt
Tank capacity: 125 litres (27 gallons)
Max.flow rate: 150+ l/min
Max. Head: 28 mt
Flow and return hoses: 2 x 5 mt hoses, 22 mm I.D. reinforced PVC + 2 x 0.5 mt circulator pump adaptor hoses
Hose end fittings: 1 BSP x 22 mm brass hose couplings
Dump hose: 8 metre long, 1 BSP brass hose adapter
Overflow hose: 3 metre long, 1 BSP hose adapter
Water inlet hose: 8 metre long, 3/4 brass hose connector
Chemical handling ability: All commercially available acids, alkaline solutions, chlorine solutions
Weight: 28.5 kg (exclusive of hose set), 40.5 kg with full hose set
Dimensions (mm) w x l x h: 530 x 680 x 890

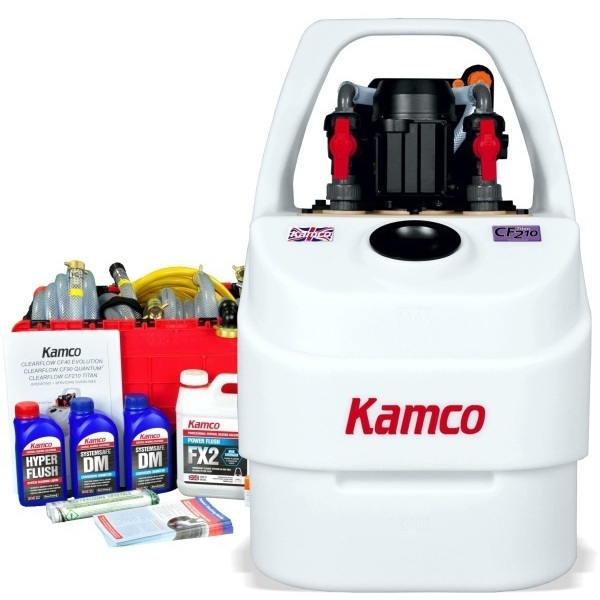

Your purchase of the Kamco Clearflow CF210 Titan Power Flusher includes:
CF210 Titan Power Flusher
Chemical Starter Pack - enough for 2+ jobs
pH test strips
Full set of hoses
Instruction Manual
FREE TRAINING
Technical Specifications
| Manufacturer Part Number |
CDP211F
|
