The Evolution has a larger high efficiency impeller, coupled to a more powerful motor, and a low-loss flow reversing device, giving a flow rate increase of more than 30%. The key to effective power flushing is a high flow rate and, for any given heating system, the Evolution will remove more debris.
Combined isolating and dump valves mean that a twist of one handle switches the CF40 Evolution into dumping mode. By this means, all parts of the heating system can be scoured with high velocity turbulent water, improving the efficiency of power flushing and reducing the job time.
The large, stylish 39 litre tank minimises overflow risks, and is fitted with 75mm wheels so that the Evolution can be easily moved even when full.
It is supplied complete with all hoses and adaptors, and even a starter pack of chemicals, so that engineers can begin flushing heating systems straight away. Free training is offered with every pump, with further knowledgeable assistance available at the end of a telephone line.
The Evolution is constructed of corrosion resistant materials so that, in the 60% of the UK with a hard water supply, it can also be used to descale any domestic boiler, water heater or heat exchanger.
Technical Data of the Kamco Clearflow CF40 - Evolution Power Flusher:
Tank capacity: 39 litres
Motor: 0.50 HP
Motor protection rating: IP54
Voltage: 110
Max flow rate: 90 lt/min
Max head: 20mt
Max temperature: 75c
Flow reverser type: Instantaneous
Control Valves: 2 x 3-port combination valves for isolation and dumping
Flow and return hoses: 2 x 5 metre hoses, 16mm I.D. re-inforced PVC
Hose end fittings: x 16mm tool-free brass hose couplings
Dump hose: 1 x 8 metre, 16mm I.D. re-inforced PVC
Water inlet hose: 1 x 8 metre ultra tough water hose pipe
Overflow hose: 1 x 3 metre, 16mm I.D. re-inforced PVC
Other hoses supplied: 2 x adaptor hoses for connection to 1.5 circulator pump fittings
Carring/transport: Integral handle, 75mm wheels
Weight: 17kg
Dimensions (mm): 390w x 440d x 690h

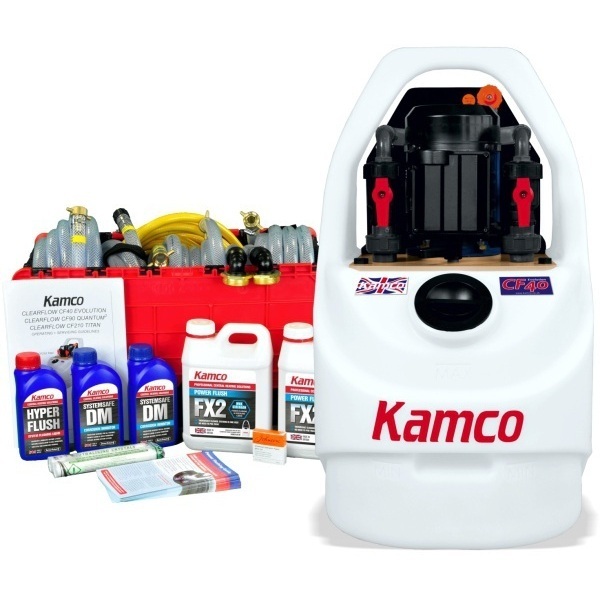

Your purchase of the Kamco Clearflow CF40 Evolution Power Flusher includes:
CF40 Evolution Power Flusher
Chemical Starter Pack - enough for 2+ jobs
2 x 2.5 litres Power Flush FX2
2 shots of Neutralising Crystals
2 x 1 litre Systemsafe DM inhibitor
1 x 1 litre Hyper-Flush
pH test strips
Full set of hoses:
1 x 8 metre Dump Hose
2 x 5 metre Flow & Return Hoses
2 x 2 metre Circ pump fittings
1 x 8 metre Water Inlet Hose
1 x 3 metre Overflow Hose
Instruction Manual
FREE TRAINING
Please note that dependant on the area you live in, an additional delivery charge could be incurred for this product.
Technical Specifications
| Manufacturer Part Number |
CDP041F
|
