Salamander 2.0 Bar Twin Univ

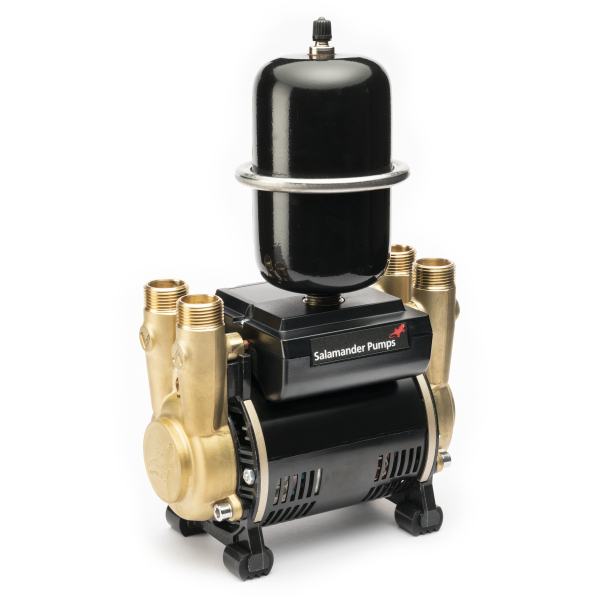

Salamander Pumps’ CT Force 20 TU Universal pump has robust brass ends and brass impellers. It’s designed to meet the increased demands for water supply within bathrooms, en-suites and whole house appliances.

This twin ended shower and bathroom pump will quietly and efficiently boost the hot and cold water supplies to showers, bath basins and toilets in a negative head gravity fed installation. This pump is also suitable across a wide range of shower types and heads, single mixer taps and will refill your toilet cistern in double quick time.

• Brass ends and brass impellers.

  • 5-year warranty.

  • Very quiet in operation.

  • Crossover technology – allows the product to power just hot or cold or both.

  • Higher pressure – to cope with multiple outlets.

  • Patented technology.

  • AV couplers included.

The CT Force 20 TU Universal pump is a 2.0 bar twin regenerative shower and bathroom pump suitable for boosting water performance in a gravity fed negative or positive head system.

This pump can be used with conventional and multi-function showers and a shower head up to 125mm. AV couplers with isolating valves are included.

Guarantee	5 years
Pump Type	Regenerative
Noise	54dBA*
Mechanical Seal	Nitrile/Carbon/Ceramic
Anti-vibration feet	Yes
Inlet isolators	Yes
Flexible Hoses	4
Pressure @ closed head	2.0 bar
Pressure @ 8lpm	1.8 bar
Pressure @ 16lpm	1.5 bar
Maximum water Temperature	65°C
Pressure vessel air pre-charge	28psi
Pump connections	3/4" BSP
Hose connections (UK model)	3/4" female x 22 mm push-fit x 280 mm long, isolating valves on all hoses
Hose connections (ROI model)	3/4" female x 21mm push-fit x 280 mm long, isolating valves on all hoses
Motor type	A.C Induction
Motor duty rating	Continuously rated
Power supply	230V
Current (full load)	2.24 amps
Power consumption	531 watts
Fuse rating	3 Amps
Power cable (pre-wired)	1.5 metres
Enclosure protection (IP rating)	IPX2
Length	186.2mm
Width	125mm
Height (Excluding hoses)	315mm
Weight (Excluding hoses)	5.57 kg

Technical Specifications

Manufacturer Part Number	CTFORCE 20TU
EAN Barcode	5055070816544
