Testo 300+ Flue Gas Analyser Advanced Kit

For testing domestic gas & oil boilers
Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurent menus
5 year sensors for reduced service costs
8,000 ppm CO sensor with H2 compensation and automatic pump shut off to prevent over-ranging
EN50379-1/3 and BS7967 compliant
20% H2 ready
Bluetooth USB dapter supplied for connectivity to testo Smart Probes
Kit includes 2 x pipe temperature clamp probes (wired) for flow/return temperature measurements
Kit includes pressure connection adapter set for gas pressure testing

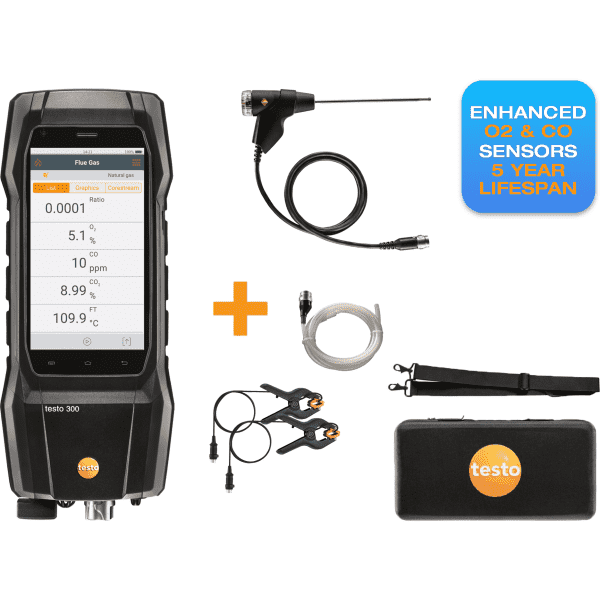

With this kit, you will be equipped for the most important measurements involving domestic heating systems alongside flow/return temperature measurements and gas pressure testing: the testo 300+ flue gas analyser is supplied with 5 year lifespan O2 and CO sensor (8,000 ppm H2 compensated), basic flue gas probe, pressure test accesory kit, 2 x wired pipe temperature clamp probes,testo Bluetooth Connector, instrument carry case, AC USB power supply.

testo 300+ Flue gas analyser Advanced kit
- Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor fitted with 5 year lifespan
- Wired temperature clamps allow for flow/return temperature measurements
- Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously (smart probes not supplied)
- Practical second screen function and easy data integration into user-specific software via QR code output

testo 300+ flue gas analyser with O2 and CO sensor up to 8,000 ppm (0633 3004 40)
USB mains unit, including cable (0554 1105)
Compact basic flue gas probe, 180 mm, 6 mm, Tmax. 500C; 1.5 m hose; including cone for fixing (0600 9740)
testo bluetooth connector (0554 3004)
2 x clamp probes (NTC) for temperature measurements on pipes ( 6-35 mm) with fixed cable (cable length 1.4 m) (0615 5505)
Pressure connection kit with 2 silicone hoses ( 6 mm and 4 mm, each 1 m long) and measuring instrument adapter for testo 300 (0554 1203)
Soft-case style Instrument bag (0516 3001)

Technical Specifications

Manufacturer Part Number

0564 3004 13

Documents

• Testo 300+ Flue Gas Analyser Advanced Kit - (4.2 MB)
