Testo 300+ Flue Gas Analyser Smart Heat Pump Kit

• For testing domestic gas & oil boilers and also monobloc or split heat pumps
• Flue gas, tightness & let-by, differential temperature & pressure, ambient CO, & draught measurent menus
• 5 year sensors for reduced service costs
• 8,000 ppm CO sensor with H2 compensation and automatic pump shut off to prevent over-ranging
• EN50379-1/3 and BS7967 compliant
• 20% H2 ready
• Bluetooth USB dapter supplied for connectivity to testo Smart Probes
• Kit includes 1 x testo 550i smart digital manifoldfor use on monobloc or split heat pumps
• Kit includes 2 x testo 115i bluetooth pipe clamp probes for flow & return temperature measurement
• Kit includes 1 x testo 510i bluetooth manometer for measurent of gas pressure and differential temperature

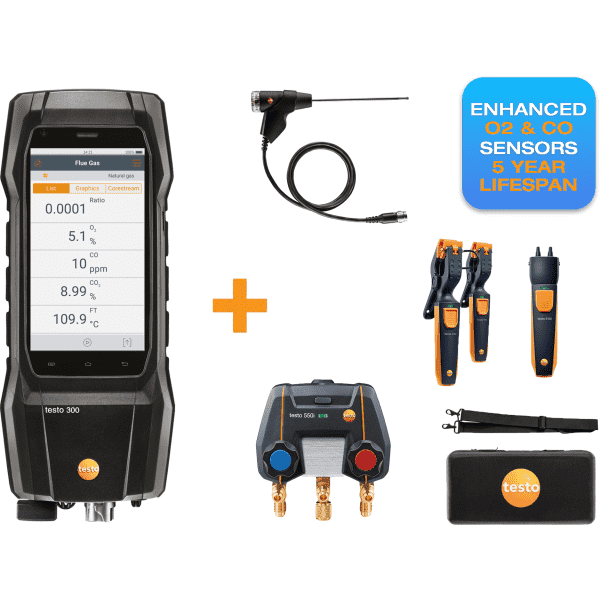

With this kit, you will be equipped to carry out smart measurements involving domestic boilers and monobloc or split heat pumps, thanks to the testo 550i smart digital manifold, bluetooth clamp probes and manometer included : the testo 300+ flue gas analyser is supplied with 5-year lifespan O2 and CO sensors (8,000 ppm H2 compensated), basic flue gas probe, testo Bluetooth® Connector, 1x testo 510i bluetooth differential manometer, 2 x testo 115i bluetooth pipe clamp thermometer, 1 x testo 550i smart digital manifold, instrument carry case, AC USB power supply.

testo 300+ Flue gas analyser 'Heat Pump' kit
- Designed for domestic boiler service, 8,000ppm H2 compensated CO sensor and O2 sensor fitted with 5 year lifespan
- Includes testo 550i smart digital manifold to allow for use with monobloc/split heat pumps.
- Bluetooth clamp probes and manometer allow wireless measurement of flow/return temperature alongside gas pressure and differential temperature.
- Efficient, wireless parallel measurement of up to four testo Smart Probes simultaneously
- Practical second screen function and easy data integration into user-specific software via QR code output

testo 300+ flue gas analyser with O2 and CO sensor up to 4,000 ppm (0633 3004 40)
USB mains unit, including cable (0554 1105)
Compact basic flue gas probe, 180 mm; Ø 6 mm; Tmax. 500°C; 1.5 m hose; including cone for fixing (0600 9740)
1 x testo 510i Smart probe manometer (0560 1510)
2 x testo 115i Smart probe pipe clamp thermometers (0560 2115 02)
1 x testo 550i smart digital manifold (0564 2550 02)
testo Bluetooth connector (0554 3004)
soft-case style Instrument bag (0516 3001)

Technical Specifications

Manufacturer Part Number

300564 3004 04
