Testo 310 (2nd Gen) Flue Gas Analyser - Printer Kit

Measurement of all relevant parameters: O2, CO, CO2
flue gas, CO environment, draught and pressure.

Colour display with easy and intuitive menu guidance.

Digital documentation, data transfer and customer
data management via testo Smart App.

Compliant to EN 50379-1 /-3.

The new testo 310 (2nd Generation) - flue gas analyser provides simple and reliable measurement of combustion values on gas or oil fired boilers.

With a simple colour screen user interface, the testo 310 (2nd Generation) offers you menu navigation with four integrated measurement menus for exhaust gas, draft, Ambient CO, and pressure. All measurement results are visible at a glance on the display and can even be configured thanks to the high-resolution graphic display.

During the measurement, you can use the testo Smart app to operate and configure your device using Bluetooth. The free testo Smart App also allows emailing of measurements direct from your smartphone or tablet. Printer can also connect via Bluetooth and provide rapid printing of results directly on site.

With quick sensor zeroing in 30 seconds, the easily replaceable probe filter and the quick-to-empty condensate trap, along with compliance to EN50379-1/-3 the testo 310 (2nd Generation) provides a perfect start point for combustion diagnostics.

Extra measurements can also be configured by using extra Testo Smart probes to provide flow/return temperature measurement and gas pressure measurement (only in conjunction with display of values within Smart App)

Simultaneous, additional measurements via the testo Smart App (e.g. gas flow pressure, flow and return temperature)

easy and intuitive menu guidance

Digital documentation, data transfer and customer data management via testo Smart App

Infrared wireless printer to produce on-site reports

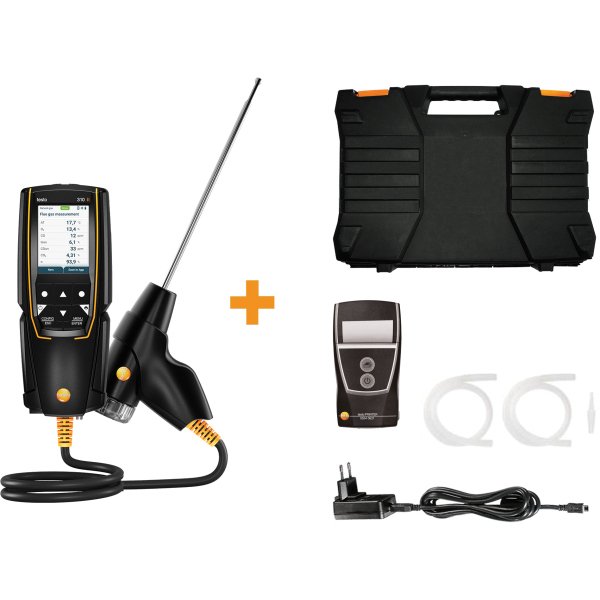

testo 310 (2nd Generation) incl. battery and calibration protocol
for measuring O2, CO, hPa and °C; Bluetooth Printer (0554 0621); probe 180 mm with cone;
case; power supply incl. cable; silicone tube for pressure
pressure measurement; particle filter 5 pcs.
Thermal paper for printer; USB C cable

Technical Specifications

Manufacturer Part Number

0563 3107
