TPI 709R Kit With Standard Accessories

Part Number : COR.C000167

£377.00 Ex VAT

£452.40 Inc VAT

In remote warehouse , delivery 3-4 days

£377.00 Ex VAT

£452.40 Inc VAT

In remote warehouse , delivery 3-4 days
Please enter your delivery postcode

Need help or advice?
Simply call us on the number below...
01285 715408
Related items

A professional instrument to carry out all essential tests including combustion analysis, differential pressure, differential temperature and CO detection.

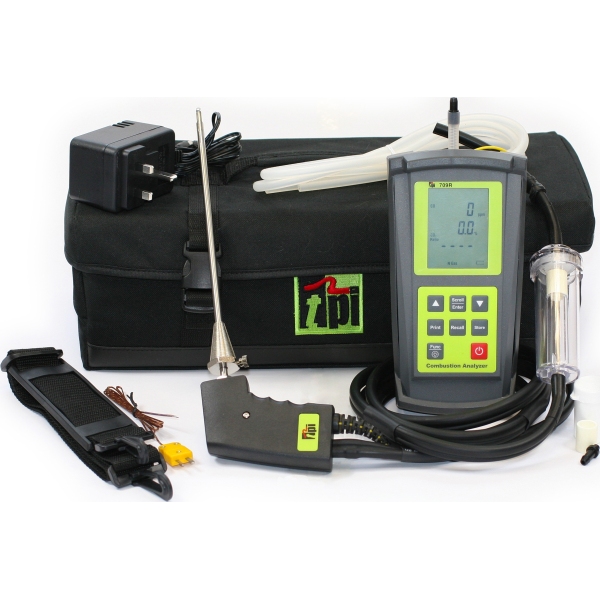

The TPI 709R Kit includes:

  • Protective Rubber Boot
  • Thermocouple Gas Sampling Probe
  • Spare filter for in-line Water Trap Bowl Filter
  • Battery Charger
  • Mini in-Line Pump Protection Filter
  • Exhaust Spigot
  • Air Thermocouple Probe
  • 2 x 1 metre Sillicone Pressure Tubing
  • Soft Carry Case
  • Instruction manual and Calibration sticker

Key Features of the TPI 709R Kit:
  • 3 year O2 & CO Sensors.
  • Longer life sensor means only 1 major service during a 6 year period. Save time and money
  • Water Trap & Disc Filter. Protects from water ingress.
  • In-line Pump Protection Filter. Stopping dust/dirt ingress into pump.
Don’t forget once you have purchased and received your TPI 709R Kit leave a "Customer Review" and share your thoughts with others.

  • Carbon Monoxide (CO) Measurement:
  • Range 0 to 10,000 ppm
  • Resolution 1 ppm
  • Accuracy +/-5ppm or 5% of reading whichever is greater
  • Oxygen (02) Measurement:
  • Range 0 to 25%
  • Resolution 0.1%
  • Accuracy ±0.3%
  • Carbon Dioxide (CO2):
  • Range 0 to 25%
  • Resolution 0.1%
  • Calculated Value
  • Temperature Measurement:
  • Range -40 to 1472°F, or -40 to 800°C
  • Resolution 1°F or °C
  • Accuracy (K-type) ±0.3%, ±2°F or ±1°C
  • Draft/Pressure Measurement:
  • Selectable Ranges mBar,kPa, and inH2O
  • Ranges -150 mBar to +150 mBar -15 kPa to +15 kPa -60 inH2O to +60 in H20
  • Resolution 0.001 inH2O
  • Accuracy ±0/5% fsd
  • Gross/Net Efficiency:
  • Range 0 to 100%
  • Resolution 0.1
  • Calculated Value
  • CO/CO2 Ratio:
  • Range 0 to 0.999
  • Resolution 0.001
  • Calculated Value
  • Operating Temperature
  • 14°F to 122°F (-10°C to 50°C)
  • Battery Type:
  • Rechargeable Batteries
  • Selectable Fuels:
  • Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
  • Display Type
  • Backlit 3 line LCD
  • Data Storage
  • 50 Locations
  • Print Capability:
  • Yes, via optional IR printer (A740)


Technical Specifications

Category Area Flue Gas Analysers
Manufacturer Part Number 709R-KIT
